KONTAL

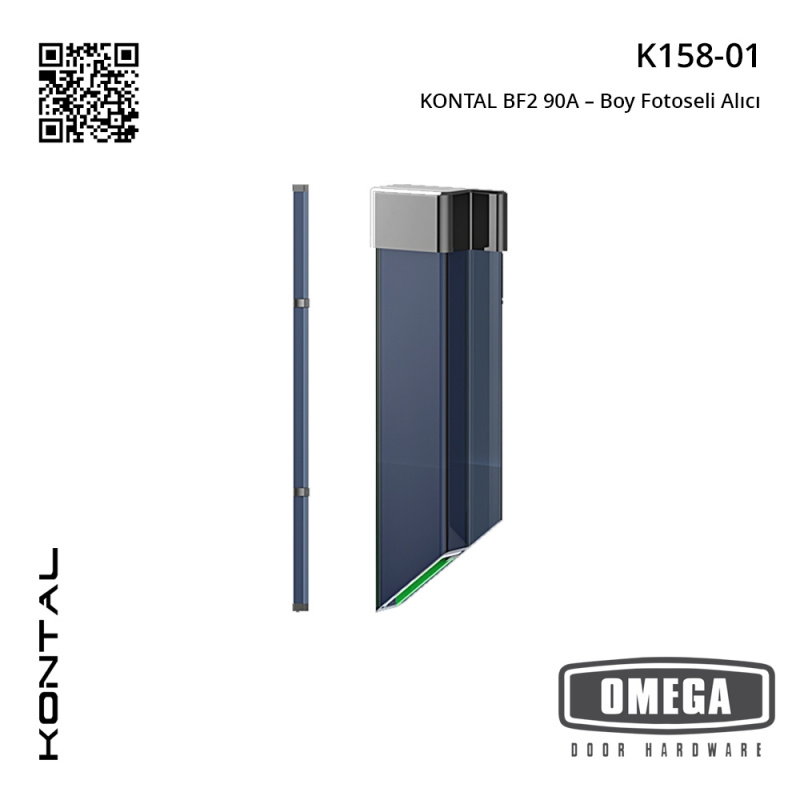

BF2 90A – Boy Fotoseli Alıcı
K158-01
Teknik Özellikler
- Model : BF2 90A
- Ürün Kodu : K158-01
- Çalışma Gerilimi : 15-40V DC
- Çalışma Akımı : 100mA @24V DC
- Maksimum Tepki Süresi (Lineer /Çapraz Mod) : 88ms / 155ms
- Maksimum Çalışma Mesafesi : 16m*
- Minimum Röle Çekme Süresi : 500ms
- Kızılötesi Sinyal Frekansı : 38kHz
- Çalışma Sıcaklığı : -20 oC +55 oC
- Kontak Tipi : Dry Contact NO / NC
- Maksimum Kontak Kapasitesi : 60V DC 100mA, 42V AC 100mA
- Ağırlık : 1450gr
- Boyutlar (En x Boy x Derinlik) : 3,6 x 92 x 1,3cm
