KONTAL

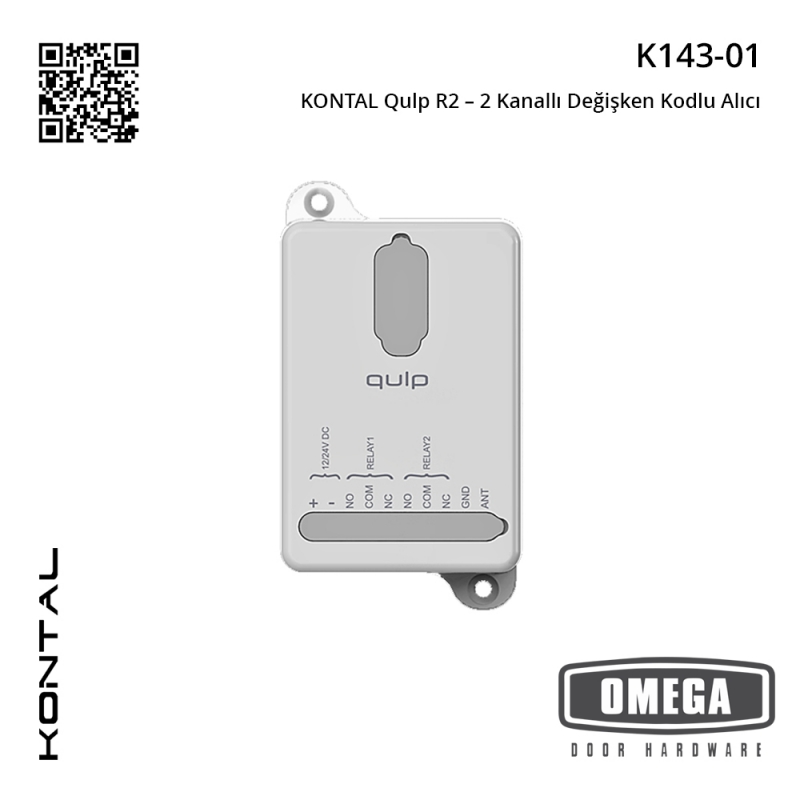

Qulp R2 – 2 Kanallı Değişken Kodlu Alıcı
K143-01
Teknik Özellikler
- Model : qulp R2
- Ürün Kodu : K143-01
- Çalışma Gerilimi : 12 – 24 V DC
- Çalışma Akımı : 40mA @24V DC
- Çalışma Frekansı : 868,35MHz
- Kanal Sayısı : 2
- Kontak Tipi : Kuru Kontak NO/NC
- Max. Kontak Gücü : 250V AC 10A
- Otomatik Öğrenme : ü
- Kumanda Kapasitesi : 500
- Ağırlık : 115,6gr
- Boyutlar (En x Boy x Derinlik) : 66 x 116,64 x 26,65 mm
